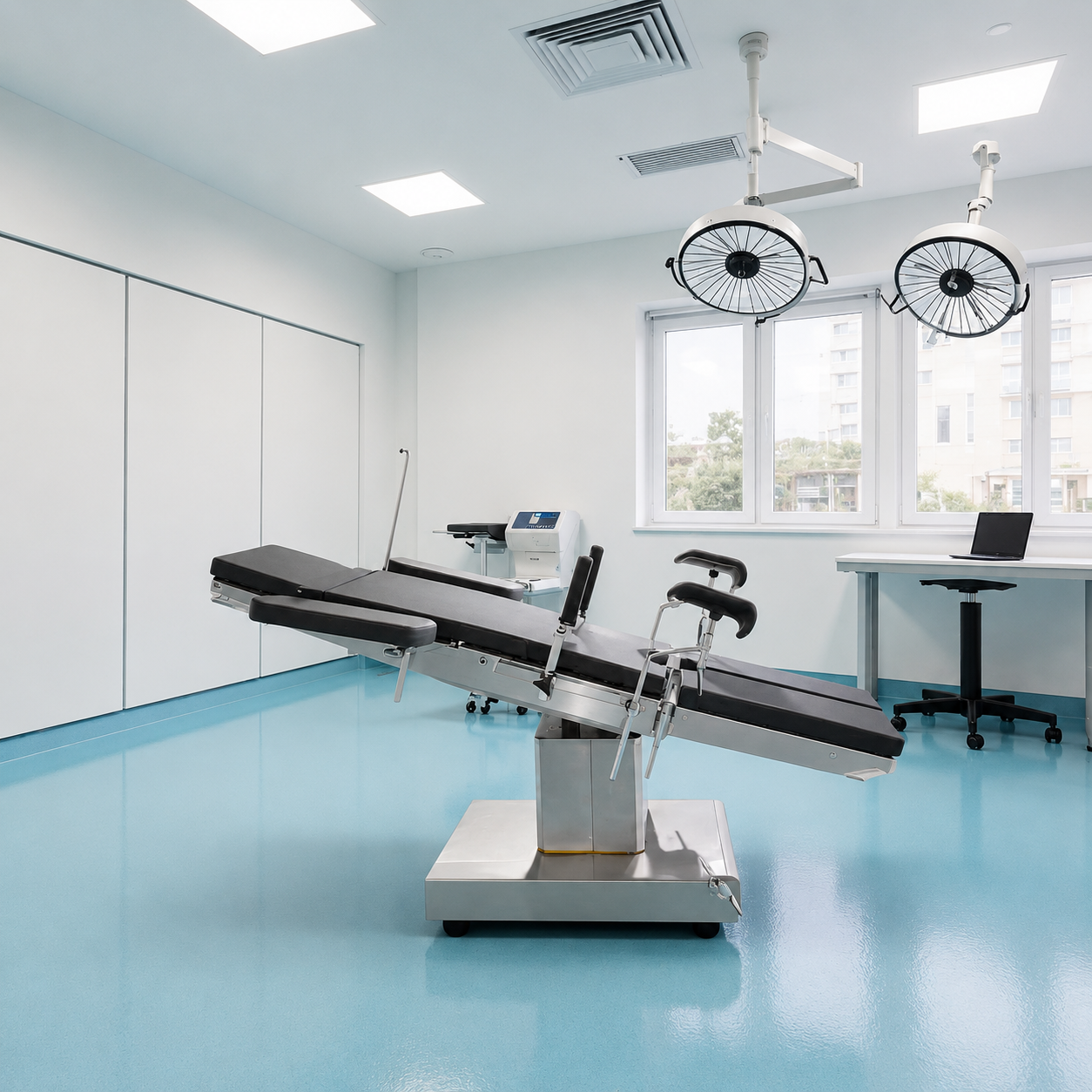

Advanced Multi-function Electric Operating Table for Modern OR
Upgrade your surgical capabilities with our Advanced Multi-function Electric Operating Table. Designed as a truly universal surgical bed, it meets the complex demands of modern operating rooms across all medical departments. Powered by a high-performance electric actuator system, it delivers ultra-smooth, precise, and quiet patient positioning, allowing surgeons to maintain optimal focus during critical procedures.
Technical Specifications
| Specification | Details |
|---|---|
| Overall Dimensions (L x W) | Approx. 2100 mm x 520 mm |
| Table Elevation Range | 700 mm to 1000 mm (Electric) |

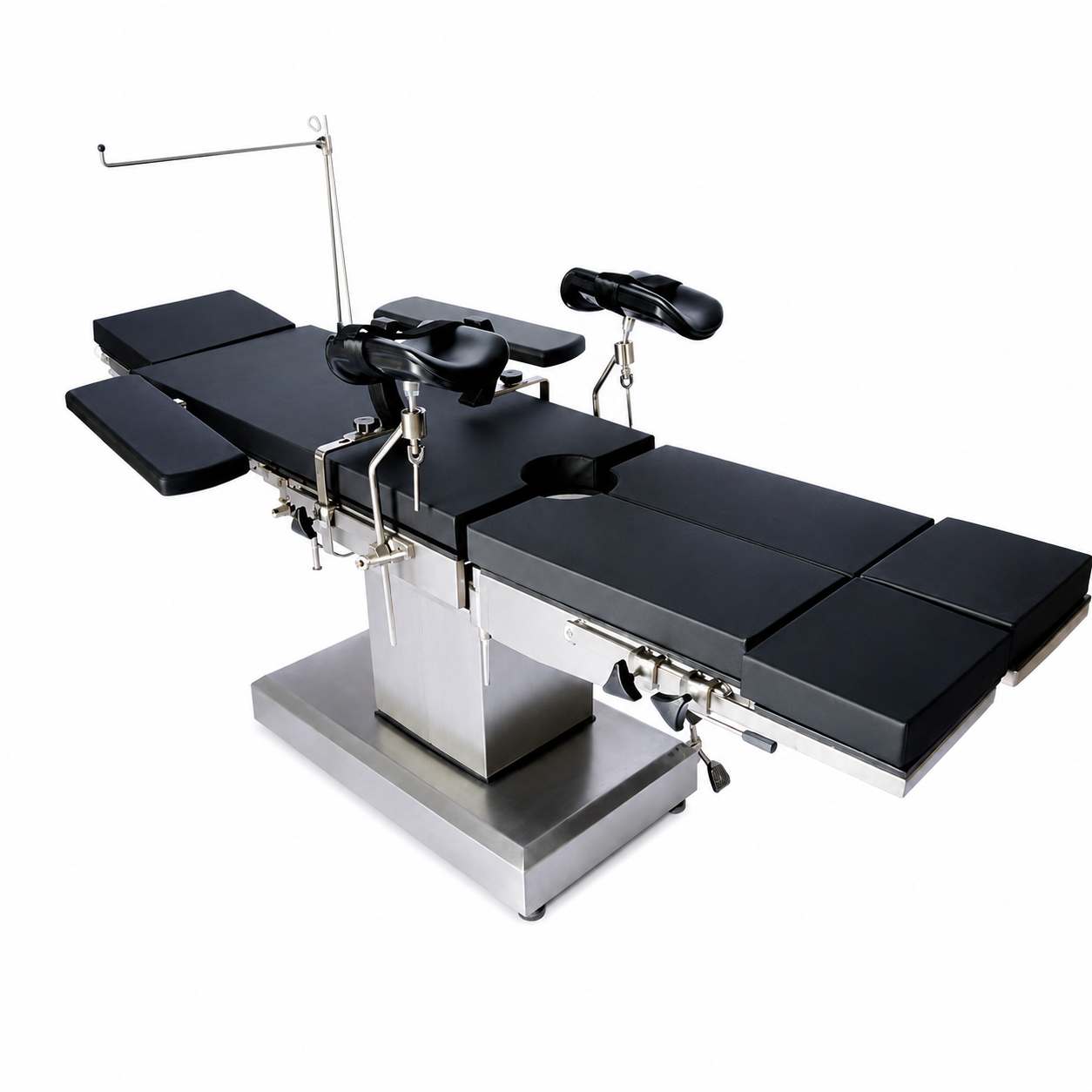

| Trendelenburg / Reverse | ≥ 25° / ≥ 25° (Electric) |
| Lateral Tilt (Left / Right) | ≥ 20° / ≥ 20° (Electric) |
| Back Plate Adjustment | Up 75° / Down 20° (Electric) |
| Leg Plate Adjustment | Down 90°, Outward 90° (Detachable via gas spring) |
| Built-in Kidney Bridge | Elevation ≥ 110 mm (Manual control) |
Core Features & Clinical Advantages
- Precision Electric Motor System: Utilizes world-class medical linear actuators to drive the elevation, Trendelenburg, lateral tilt, and backplate movements. It ensures whisper-quiet, jerk-free adjustments for patient safety.

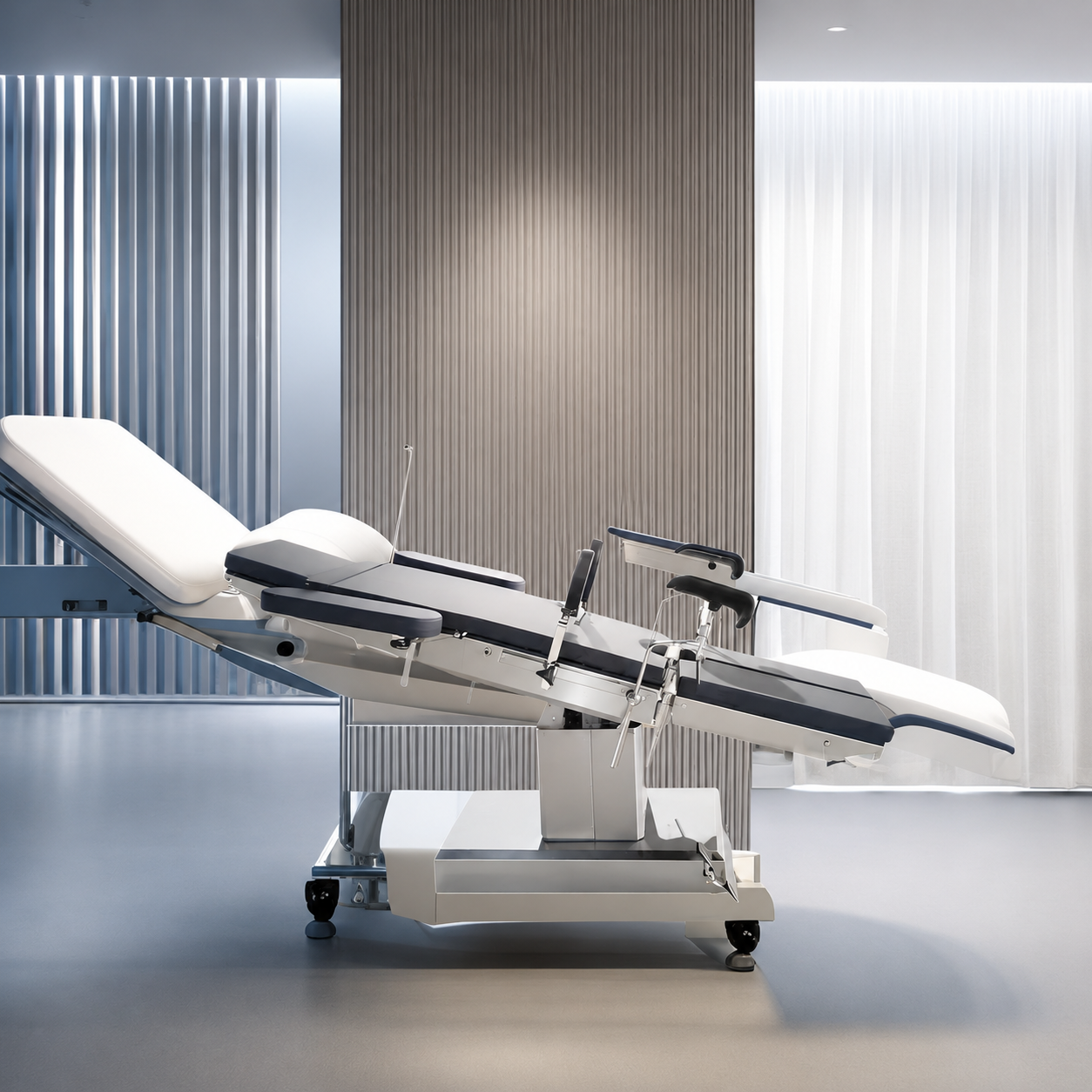

- Unrestricted C-Arm Access: The eccentric column design combined with a radiolucent tabletop provides a large imaging area, making it fully compatible with C-arms and X-ray machines for orthopedics and cardiovascular imaging.

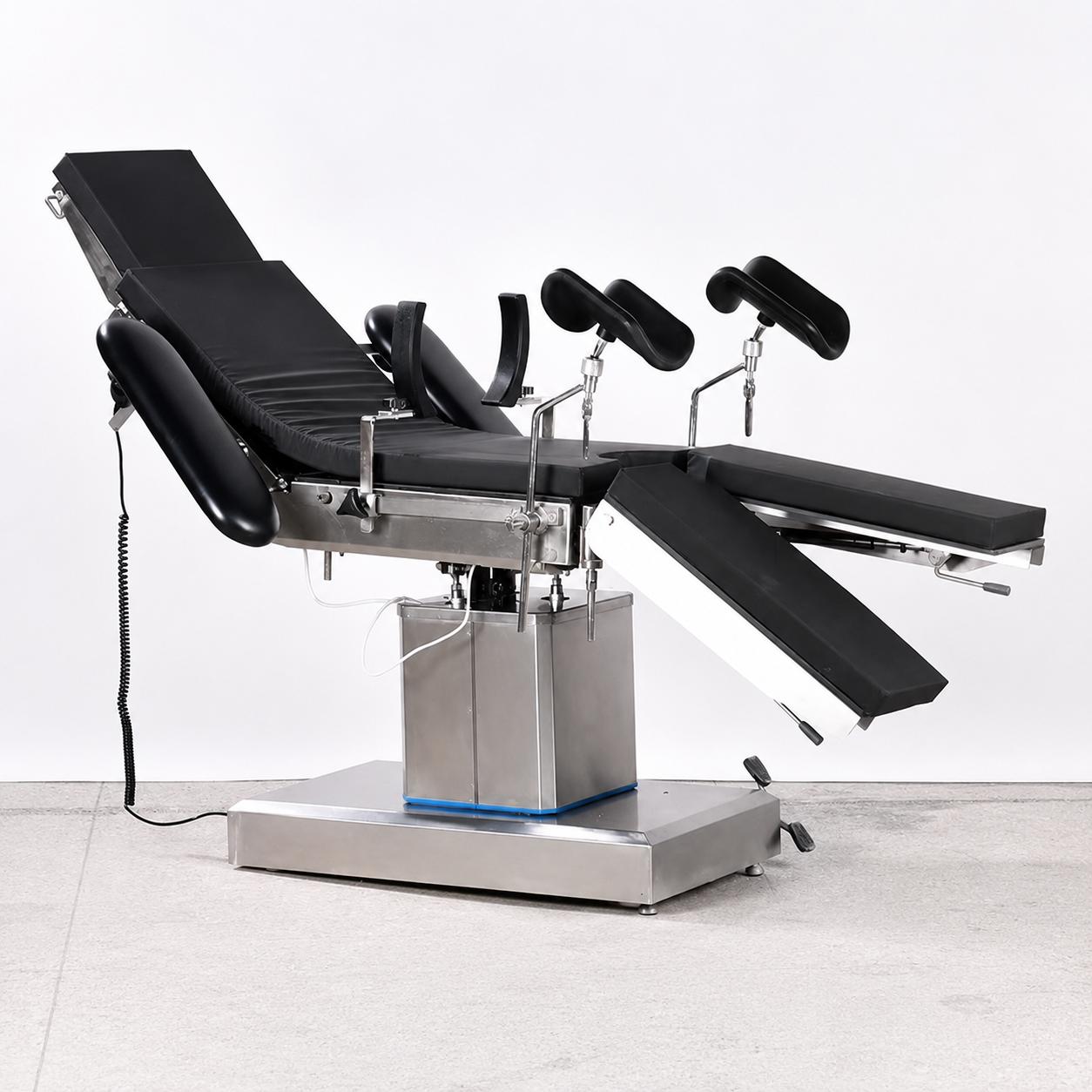

- Dual Control System with Battery Backup: Operated via an intuitive wired hand controller. In case of a controller failure, an override control panel on the column can be used. The built-in high-capacity battery guarantees uninterrupted operation during unexpected hospital power outages.
- Premium 304 Stainless Steel Construction: The sturdy base, lifting column cover, and side rails are forged from top-tier 304 stainless steel, offering exceptional resistance to corrosion, rust, and harsh hospital disinfectants.
- Memory Foam Mattress: The antistatic, seamless polyurethane (PU) memory foam mattress distributes body pressure evenly, reducing the risk of pressure sores during lengthy operations and allowing for effortless cleaning.
Universal Department Application
Supplied with a comprehensive set of high-quality stainless steel accessories (arm supports, leg crutches, anesthesia screen, body supports), this table is instantly ready for General Surgery, Urology, Gynecology, Orthopedics, Neurosurgery, and more.
